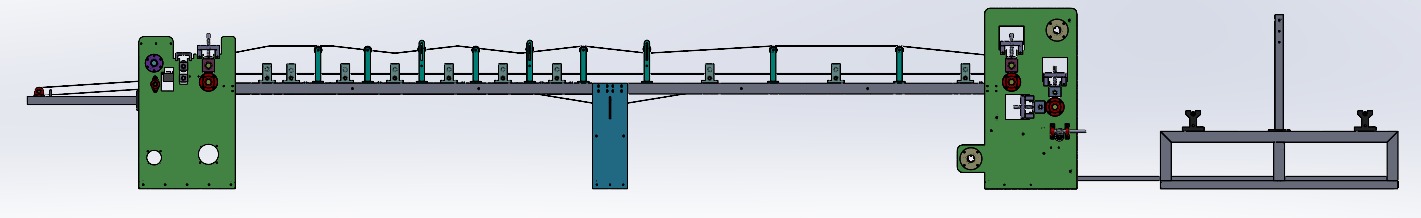

ONLINE CORRUGATED THREE PLY BUFFET SHEET MAKING MACHINE

Heavy Duty Oblique Type Paper Corrugation Machine with Reel Stand

Size: 32”

Roller Specification:

1) Flute Roller:

Upper Flute Roll Size: 210mm

Centre Flute Roll Size: 222mm

Flute Profile: A, B, C Flute as per Client Requirement

En-19 Material

Bearing Make -ISI Mark

2) Pressure Roller:

Roller Size: 225mm

Pressure Roller Graded Cast Iron

Bearing Make – ISI Mark

3) Glue Roller:

Glue Applicator Roller: 110 mm

Glue Doctor Roller: 165 mm

Bearing Mounted

Pre-Heater Roller, Bearing Mounted

Heating Load: 21 kW (7 kW x 3 Nos)

Main Motor Brand Havel’s or Any ISI Mark Standard Company – 3 H. P

Control Panel: ? VFD of IsI Mark Brand

MCB and all component of Chint Brand

Auto ON/OFF Heater Regulator for Power Saving

3-Phase Volt Indicator.

Reel Stand: Self-Loading Hydraulic Reel Stand with 2- Unwinding Shaft, Mechanical Brakes & Hydraulic Power Pack (1 Mtr)

Automatic Conveyor Attachment for threeply corrugated buffet sheet making

Reel stands for laminated roll

Pre heater roll for laminated roll

Pre heater roll for 2 ply corrugated kraft roll

Pasting unit

Gum tray

30 ft. conveyor belt

No of hot plate – 3+3

Plc cutter unit

Plc panel

1 no’s slitting cutter

Conveyor for buffet sheet landing

Heavy duty body structure

3 mm conveyor belt

Motor with gear box 3 + 2 hp

2 nos. of conveyor belt

Pre heater 2 kw each

Hot plate 3 kw each (2 plate)

Production 70,000 to 80,000 pieces per days (13*13 sheet size)

Note: - Total length required = 80 feet approx.

Total power = 35 kw

Installation charge extra

Transport to pay

Gst 18% extra

Delivery time 80 to 90 days
